Shenzhen Zhongtu Automation Technology Co., Ltd.
1 Years
| Ask Lasest Price | |
| Brand Name : | ZT |
| Model Number : | ZT-HXJ441-R |
| Certification : | CE, ISO, RoHS |
| Price : | USD 3100-3500/SET |
| Payment Terms : | T/T |
| Supply Ability : | 1000 |
| Delivery Time : | 15-30 Day |

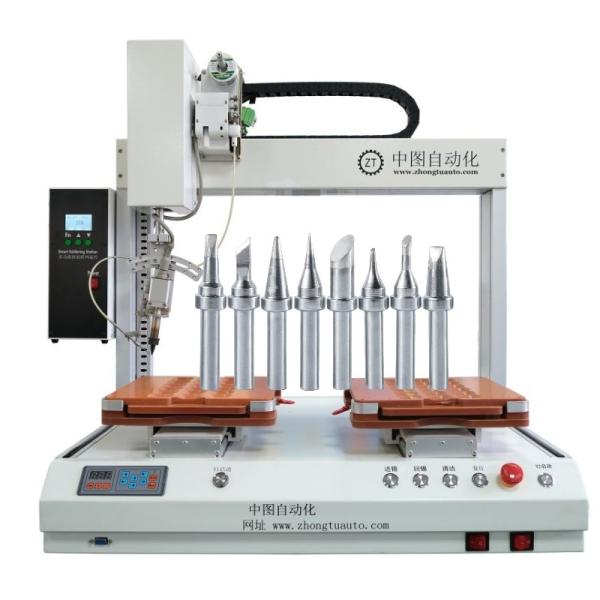

ZT Customizable Automatic Soldering Machine for DIP with 3 and 0.6-1.5mm Solder Wire
The structure of the dynamic soldering machine is mainly adjusted in three degrees of space, so that the soldering iron and the tin line do not need to leave the operator's hand, it completely replaces your hands, and the arm can be adjusted to any welding position you want. The equipment consists of a plurality of manipulators, tin feeding systems, control systems, soldering iron systems. Read more about the core structural components below. Automatic tin feeding control system and automatic constant temperature control system: the control system of automatic soldering machine is an important part, which can carry out high-speed drag welding, spot welding and diagonal welding for various workpieces; Array replication, parameter replication function; The cleaning step can be inserted in the middle of the program, and the steps such as jumping and pressing can be set; Unique Model real name PN# storage and setting functions; Communication between machines, program copy function, a lot of manual program to save time; Program single correction, overall correction function, can quickly correct the origin and workpiece offset;
Product Parameter:
| Name: | Automatic Soldering Robot | Place of Origin: | ShenZhen, China | |
| Applicable Industries: | Manufacturing Plant, SMT , DIP | Key Selling Points: | Automatic | |
| Video outgoing-inspection: | Provided | Weight (KG): | 65Kg | |
| Marketing Type: | New Product 2024 | Voltage: | 220/110V 50~60Hz | |
| Warranty period: | 1 Yea | Dimensions: | 850*750*850mm | |
| Warranty of core components: | 3 Years | Solder Wire: | 0.6~1.5mm solder wire | |
| Core Components: | PLC | Temperature Accuracy | ±3° | |
| Power: | 680W | Solder Feeding Speed | 1~50mm/s | |
| Current: | 5A | Repeate Accuracy | ±0.02mm | |
| Model | ZT-HXJ041R | ZT-HXJ441-R | ZT-HXJ4411-02 | ZT-HXJ4411-02R | Fixture Customization |
| Solder Power | 200W | 200/400w 600W | 200/400W | 200/400/600W | Need |
| Heating Temperature Range | 0-550ºC | ||||
| Machine Axis Number | 4axis | 4axis | 4axis | 5axis | Max moving speed |
| X Axis | 400mm | 400mm | 400mm | 400mm/2X | 600mm/s |
| Y Axis | 300mm | 300mm/2Y | 300mm/2Y | 300mm/2Y | 600mm/s |
| Z Axis | 100mm | 100mm | 100mm | 100mm | 400mm/s |
| R Axis | 360° | 360° | 0 | 360° | ±0.05° Error |
| Temperature Errors | ±2° | ||||
| Tin Wire Diameter | φ0.6mm-1.5mm | ||||
| Teaching File Capacity | 256MB, up to 999 files, single file up to 1000 points | ||||
| Air Pressure | 4-5kg/cm² | ||||
| Weight(Kg) | 58Kg | 68Kg | 75Kg | 85Kg | Customized |
| Size(mm) | 600*750*850 | 800*750*850 | 850*750*850 | 1000*750*850 | To order |
Our advantage:
Our Services:
| Pre-Sale | In Sale | After Sale |
| 1.Product Introduction, 2.Technical Communication, 3.Remote consulting service. | 1. Show the product, 2. Explain in detail how to use the product. 3. Answer the questions raised by customers. | 1.Support video service. 2.The whole equipment is guaranteed for 1 year; 3.The guide rail/motor/control parts is guaranteed for 3 years. |
1. who are we?
We are based in Guangdong, China, start from 2015, There are total about 50-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us?
Soldering machine,Precision spot welding machine,Glue dispenser,Screw machine
4. why should you buy from us not from other suppliers?
With ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our own success.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,CPT; Accepted Payment Currency:USD,EUR,HKD,CNY; Accepted Payment Type: T/T,PayPal,Cash;
6.What is your Warranty for the product? How do you carry out it?
We provide 1 Year Warranty for unit machine and 3 years warranty for main board.More details pls contact me.
7. May I buy samples from you?
Yes! You are welcome to place sample order to test our superior quality and service.
8.Are you just trading company or factory?
We are professional manufacturer for automation machine since 2015.
|
|
