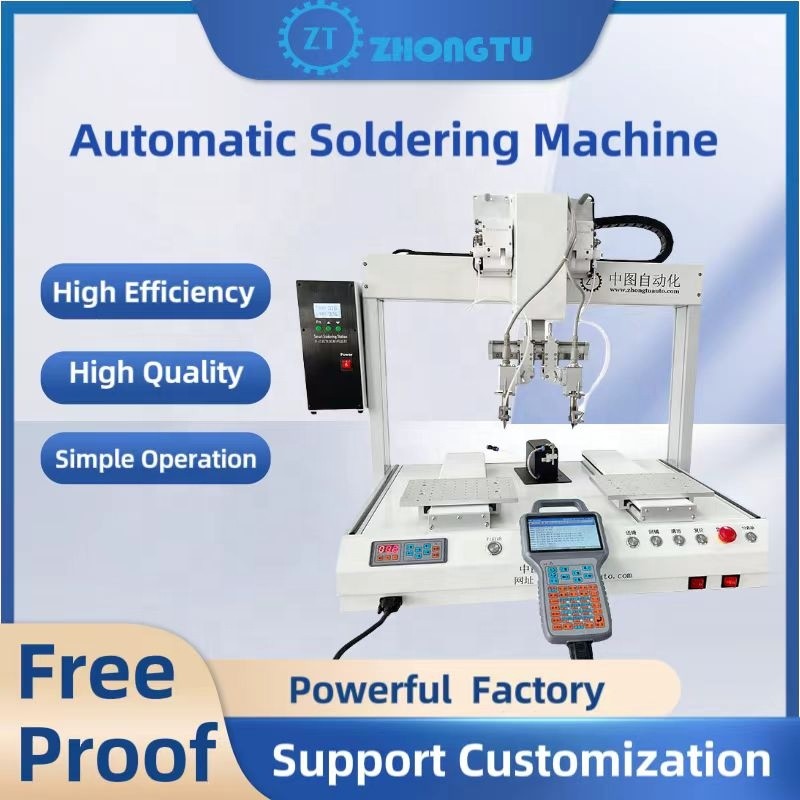

Top Quality Small Automatic Soldering Machine PCB Cheap Soldering Robot Price

The automatic soldering machine represents a pinnacle of automation in welding technology, and the following sections offer an elaborate introduction:

1. Operational Mechanism

This sophisticated device primarily orchestrates the movement of its manipulator through meticulously programmed instructions, enabling it to execute soldering tasks along meticulously predetermined trajectories and parameters. Simultaneously, the automatic tin feeding mechanism within the solder system adeptly delivers solder wire to designated welding positions based on precise specifications, while the temperature control system ensures that the soldering iron tip is maintained at an optimal thermal state to guarantee superior quality results.

2. Core Components

• Soldering System:

• Automatic Tin Feeding Mechanism: This critical component precisely regulates both speed and quantity of tin delivery, ensuring uniformity in each application while effectively preventing issues related to excessive or insufficient tin.

• Temperature Control Heating Element: Tasked with heating the soldering iron tip to achieve ideal welding temperatures, this element continuously monitors and adjusts real-time conditions to maintain stability—thereby safeguarding against quality degradation due to extreme thermal fluctuations.

• Soldering Iron Tip: Directly engaging with molten solder; it transfers essential heat required for melting and forming robust joints. The material composition and design of this tip significantly influence welding outcomes; thus, selecting an appropriate tip is paramount for various applications.

• Robotic Arm: Comprising multiple joints and axes, this arm facilitates agile three-dimensional movements that allow for precise positioning of the soldering tip at targeted locations. Its motion accuracy and speed are pivotal determinants of both operational efficiency and weld integrity.

3. Product Features

• High Precision Welding

Equipped with cutting-edge motion control systems alongside high-precision sensors enables micron-level positional accuracy in delivering solders exactly where needed—ensuring dimensional integrity at joint sites.

Furthermore, meticulous regulation by the temperature control system minimizes thermal variations during operation which aids in preventing defects such as cold or missed welds.

• Efficient Production

With rapid welding capabilities that far exceed manual methods—some machines achieving speeds between 60-120 cm per minute—they can swiftly execute extensive volumes of work.

Additionally, these machines are designed for continuous operation over extended periods without fatigue-related interruptions enhancing overall production efficiency suitable for large-scale manufacturing demands.

• Versatility

Capable of accommodating a diverse array of welding techniques including spot welding, drag (pull) welding, round seam joining among others tailored towards varying types/shapes required by different applications.

Moreover equipped with self-cleaning functionalities allows regular maintenance on tips reducing residue build-up which enhances both performance reliability & longevity.

• User-Friendly Operation

Typically featuring intuitive human-machine interfaces allowing operators seamless parameter adjustments procedure edits monitoring equipment status via touchscreens/buttons effortlessly.

Some models support graphical programming simplifying procedural generation through visual manipulation rather than necessitating complex coding expertise.

• Flexibility & Adaptability

Rapid reconfiguration is achievable according differing components/production requirements accomplished simply by swapping clamps/solder tips adjusting program settings accordingly adapting effectively across varied sizes shapes materials involved in projects undertaken .

Integration potential exists alongside other automation machinery facilitating cohesive connections throughout entire production workflows improving systemic efficiencies overall .

4 . Application Scope

The automatic soldering machine finds extensive utilization across electronics , electrical appliances , telecommunications automotive aerospace sectors catering specifically towards numerous electronic elements circuit boards wires cables connectors etc . For instance :

• Electronics Sector : Assembly processes involving motherboards displays batteries integral parts found within mobile devices computers tablets ; semiconductor product assembly like LSI IC hybrid IC CSP BGA etc .
• Home Appliance Industry : Circuit board assemblies connecting wiring harnesses essential components integrated into household appliances .

Product Parameter:

Specification:
